| Goldsmith Machinery for Wire, Sheet Rolling & Wire Drawing |
|
| Rolling Machinery |
Rolling machine for flat & wire, suitable for small & large industries. These rolling machines have direct motor wheel & gear systems, which require minimum space.
The high quality of materials and workmanship and high level of quality control employed enable us to offer a first class product. |
| Model |
Roller size |
Rolling Thickness |
Roller |
Power |
Require |
Weight |
| R.P.M |
H.P |
Space |
Kgm. |
| Wire |
Sheet |
|
|
LxDxH |
|
SD100
(4 inch) |
100x63
m.m |
9 m. m |
18 m.m |
45 |
1.5/220v |
33x22x53 inch |
220 |
SD125
(5 inch) |
125x63
m.m |
10 m.m |
18 m.m |
45 |
1.5/220v |
33x22x53
inch |
245 |
SD150
(6 inch) |
150x77
m.m |
11 m.m |
20 m.m |
45 |
3/440v
or 220v |
43x25x58
inch |
430 |
SS200
(8 inch) |
200x103
m.m |
14 m.m |
25 m.m |
31 S.S
47 D.S |
5/440v |
50x30x50
inch |
725 |
SS100
(4 inch) |
100x63
m.m |
9 m.m |
18 m.m |
45 |
1.5/220v |
22x22x53
inch |
160 |
SS125
(5 inch) |
125x63
m.m |
10 m.m |
18 m.m |
45 |
1.5/220v |
24x22x52
inch |
180 |
SS150
(6 inch) |
150x77
m.m |
11 m.m |
18 m.m |
45 |
3/440v
or 220v |
30x24x58
inch |
310 |
|

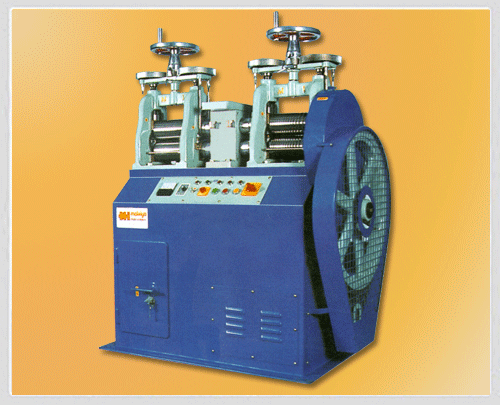

| Model SD 200 |

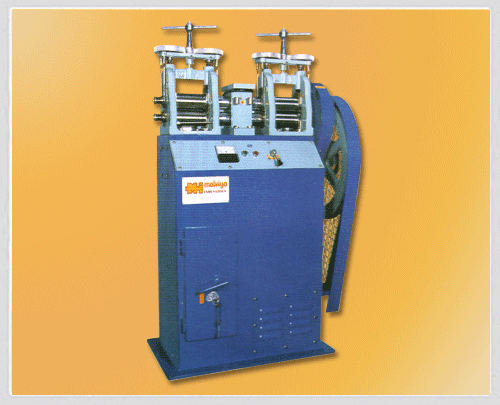

Model SD 125 |
Model SD 150 |
Model SD 200
|
|
Model SD 125
|
|

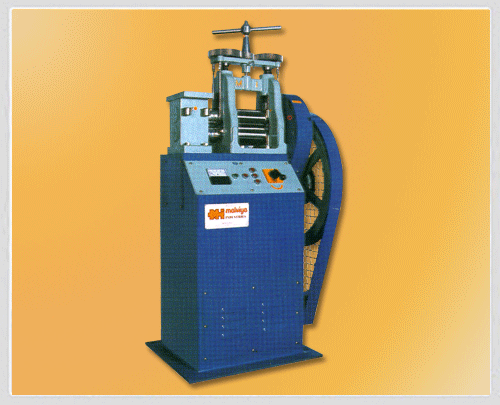

Model SS 150
|
|
|
| |
| Other Features |
| The lubrication of model No. WSS 200 & SD 200 is completely automatic. All bush bearing are constantly lubricated thus ensuring a long life even under maximum load condition. The rolling machine is equipped with motor operated take up spool. |
| Model |
Roller
Size |
Rolling |
|
|
Require |
|
| Thinckness |
Roller |
Power |
Space |
Weight |
| Wire |
Sheet |
R.P.M |
H.P |
LxDxH |
Kgm. |
WSS200
(8 inch) |
200x103 m.m |
14 m.m |
25 m.m |
31 S.S
47 D.S |
5/44 v |
40x25x63
inch |
473 |
WD100
(4 inch) |
100x63 m.m |
9 m.m |
18 m.m |
45 |
1.5/220 v |
31x18x34
inch |
170 |
WD 125
(5 inch) |
125x63 m.m |
10 m.m |
18 m.m |
45 |
1.5/220 v |
34x18x34
inch |
180 |
WS100
(4 inch) |
100x63 m.m |
9 m.m |
18 m.m |
45 |
1.5/220 v |
20x18x34
inch |
130 |
WS125
(5 inch) |
125x63 m.m |
10 m.m |
18 m.m |
45 |
1.5/220 v |
23x18x34
inch |
135 |
|

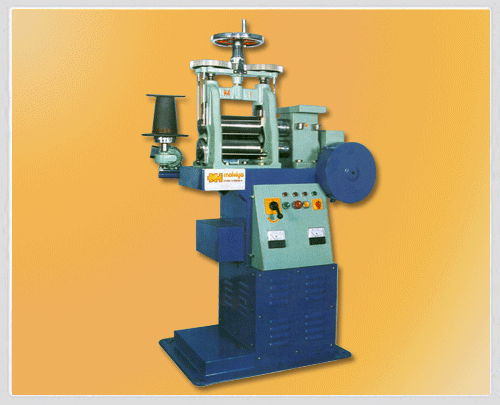

| Model WSS 200 |

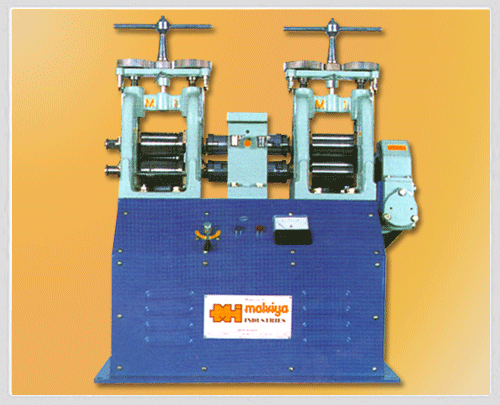

Model WD 100 |

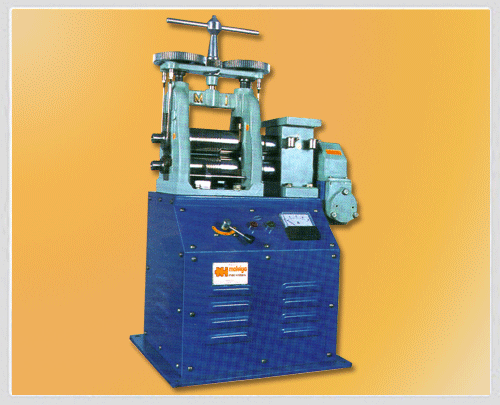

Model WS 125 |
Model WSS 200
|
|
Model WD 100
|
|
Model WS 125
|
|
|
|
|
| |
|
